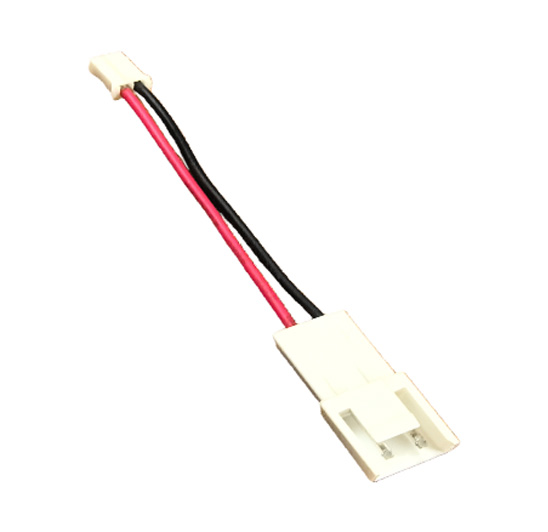

Professional PH2.0 to SM3.96 air butt cable

Product Description:

This product is a professional-grade PH2.0 interface to SM3.96 aerial docking connection cable, using UL1007 20AWG standard cable, and distinguishing positive and negative electrodes with black and red color schemes. Both ends of the connector are made of high-temperature engineering plastic shell, and the SM3.96 end is used for the design of the aerial docking structure. The product supports full customization of terminal color, wire color, and length.

Key features and benefits:

• Dual-specification interface: PH2.0mm in-line and SM3.96mm air docking,suitable for power supply or data bridging.
• Flexible Customization: Supports full customization of terminal color, wire color, and length
• Electrical performance: working voltage 300V, rated current 5A
• Wire temperature resistance: 80°C

Technical parameters

• Contact resistance: ≤20mΩ
• Insulation resistance: ≥100MΩ (500V DC)
• Fire Resistance Rating:UL94 V-0、UL VW-1、CSA FT1
• Cable Specification: UL1007 20AWG Two-Color Cable (Black/Red)
• Rated voltage: 300V AC/DC
• Wire temperature resistance: 80°C

Application scenarios

• Consumer electronics: Internal connectivity of mobile devices
• Industrial automation: control panel and PLC cabling
• Telecommunications: Network equipment board connections
• Automotive systems: On-board electronic connectivity
• Medical devices: Instrument internal wiring
