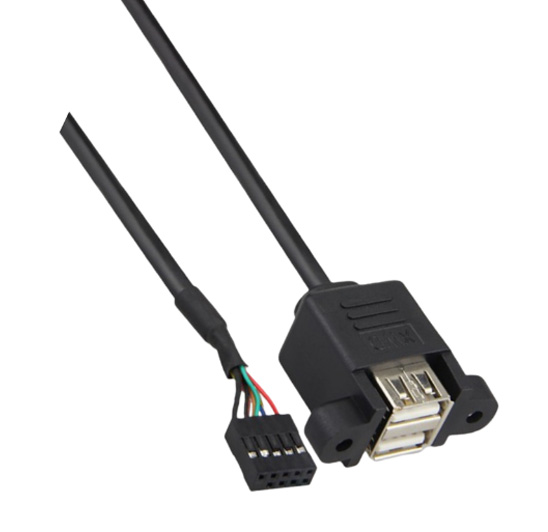

Product Description
Differential signal voltage: D+ and D- are differential signals.
Differential Output Voltage (Vod): 360 mV – 440 mV.
Common mode voltage (Vcm): 0.75 V – 1.3 V.
Reception Sensitivity: Minimum identified 100mV differential voltage.
Differential pressure impedance: 90 Ω ±15%.
Transmission rate:High speed: 480 Mbps
Power Specification: VBus 5V ±5%. The maximum current is 500mA
Key Features and Benefits:
- Space utilization: USB ports are stacked in two layers to save deployment space.
- Plug and Play: The system will automatically recognize.
- Transmission speed: 480Mbps.
- Customizable Pitch: Multiple pitch options (1.27mm, 2.0mm, 54mm).
- Material: The conductor is insulated from high-purity oxygen-free copper and flame-retardant PVC. Guaranteed safety and reliability.
- Flexibility: The insulating outer layer of PVC wire offers excellent flexibility and resistance to bending.
Typical application scenarios
- Chassis panel: The USB port of the computer chassis panel.
- Industrial Control Computer: Industrial Control Computer Data Interface.
- Device Programming Interface: Provides connectivity solutions for USB programming devices.
- Educational experimental platform: electronic engineering teaching and experimental projects.
