Product Description

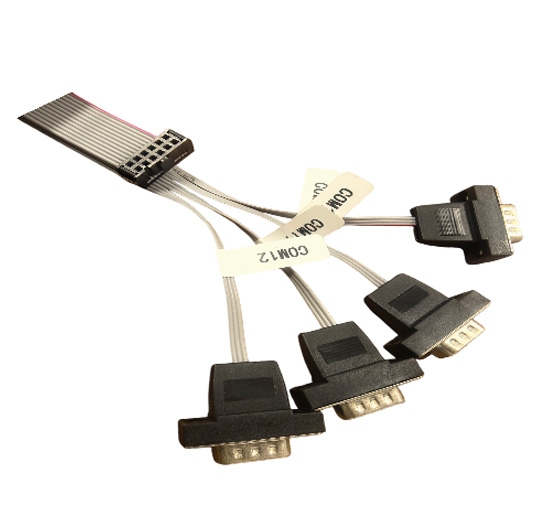

This product is a PH2.54mm pitch IDC socket version 4-port serial flat cable assembly with high-quality grey flat cable. Following the RS-232 serial communication standard, professional 2, 3, 5 cabling definitions are adopted: Pin 2 (TXD: transmitted data), Pin 3 (RXD: received data) and Pin 5 (GND: signal ground). Perfect compatibility with a wide range of serial devices.
Key features and benefits:
- Standard cabling definition: 2 (TXD), 3 (RXD), 5 (GND) signal transmission is accurate
- Pitch advantages: PH2.54mm pitch for stronger mating stability and higher current carrying capacity
- Plug and Play: No additional configuration required, directly compatible with mainstream serial devices
- Signal Integrity: Independent TXD, RXD, and GND lines effectively prevent signal interference
- Quick Fault Diagnosis: Standardized line sequences facilitate quick troubleshooting of connection issues
- Compatibility Guarantee: Compliant with RS-232 communication standard for stable connection
2, 3, 5 Routing Define Details
- Pin 2 (TXD): The data transmission end, which sends data from the DTE device to the DCE device
- Pin 3 (RXD): Data receiver, receives data from the DCE device
- Pin 5(GND): Ground signal
- Typical application scenarios
- Serial communication equipment: used for serial port connections of industrial computers, PLCs and other equipment
- Data acquisition system: serial data acquisition for sensors and instruments
- Industrial control system: device communication based on RS-232 protocol
- Test and measurement equipment: Connection of serial port tester and communication analyzer
