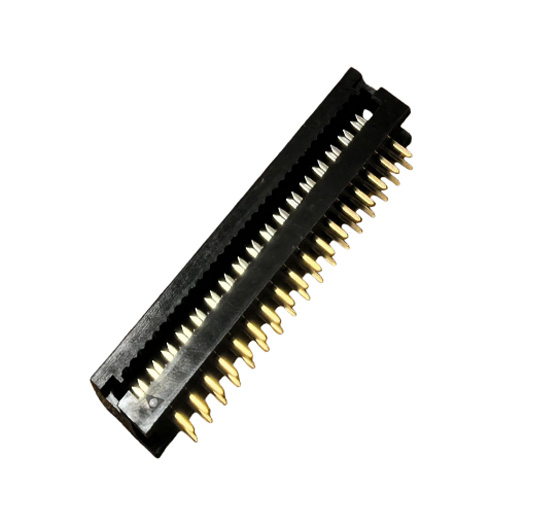

2.54mm Pitch, Dual-Row DIP Plug Header: Reliable Board-Level Interconnection

This high-pin-count DIP plug header is designed for robust, high-density connections in demanding electronic systems. Its standard 2.54mm pitch and durable construction ensure secure mating and long-term reliability.

Key Product Features

• Precision Gold-Plated Pins

The pins feature a gold-plated finish, providing excellent conductivity, low contact resistance, and superior resistance to oxidation and corrosion for consistent signal integrity.

• High-Temperature Plastic Housing

The robust, black thermoplastic housing offers high mechanical strength and can withstand elevated temperatures encountered during soldering and operation.

• Standard 2.54mm (0.1″) Pitch

The universal dual-row, straight-pin layout with standard spacing ensures seamless compatibility with a wide range of DIP sockets and PCB footprints, simplifying the design process.

• Easy-Wire Entry & Polarization

The open channel on the housing facilitates easier wire insertion during assembly. The design includes a polarization feature (triangular mark) to prevent incorrect mating with the corresponding socket.

Primary Advantages

• Optimized for High-Density Applications:The dual-row design provides a high number of connections in a compact form factor, saving valuable PCB space.
• Secure and Stable Connection:The straight pins with chiseled tips ensure a firm press-fit into PCB through-holes, creating a reliable mechanical and electrical bond.
• Streamlined Automated Assembly:The tape-and-reel packaging (compatible) and uniform design are ideal for high-speed, automated pick-and-place manufacturing, reducing production costs.
• Proven Long-Term Performance:The combination of a high-temperature housing and gold-plated contacts guarantees durability and stable performance over the product’s lifecycle.

Typical Applications & Industries

This connector is widely used across various sectors for board-to-board and cable-to-board interconnections:

• Industrial Electronics:Programmable Logic Controllers (PLCs), industrial control systems, sensor interfaces.
• Telecommunications & Data Networking:Routers, switches, servers, and base station equipment.
• Computer Peripherals & Hardware:Motherboards, add-on cards, and internal power distribution.
• Test & Measurement Equipment:Data acquisition systems, oscilloscopes, and signal analyzers.
• Medical Devices:Monitoring and diagnostic equipment where connection reliability is critical.

Summary

This 2.54mm DIP plug header is a fundamental component for creating dependable interconnections in modern electronic design. It offers a perfect balance of standardized compatibility, high-density performance, and manufacturing efficiency.

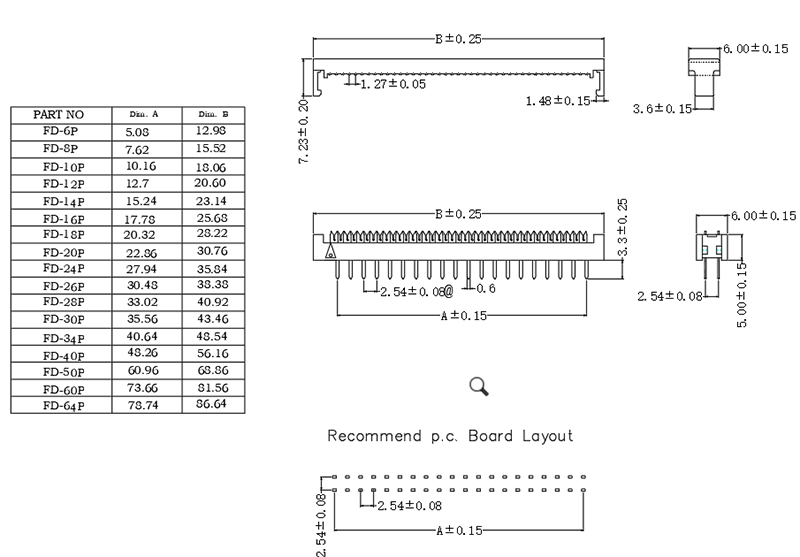

Specification
